304 316 Weave Screen Mesh Stainless Steel Woven Wire Mesh

Brand Sunny
Place of origin China
Delivery cycle Two Week
Availability Long-term Supply

Attachment download

Engineered for uncompromised performance in food processing and industrial filtration, our 304 and 316 stainless steel woven wire sieve mesh delivers exceptional durability, precision, and food-grade safety.

Message

Engineered for uncompromised performance in food processing and industrial filtration, our 304 and 316 stainless steel woven wire mesh delivers exceptional durability, precision, and food-grade safety. Crafted from high-tensile stainless steel wire, this mesh features uniform apertures, zero curl, and consistent thickness for reliable, repeatable results.

Product Name	Stainless Steel Wire Mesh
Material	SUS/AISI 304 304L 316 316L 904 310 310S 430

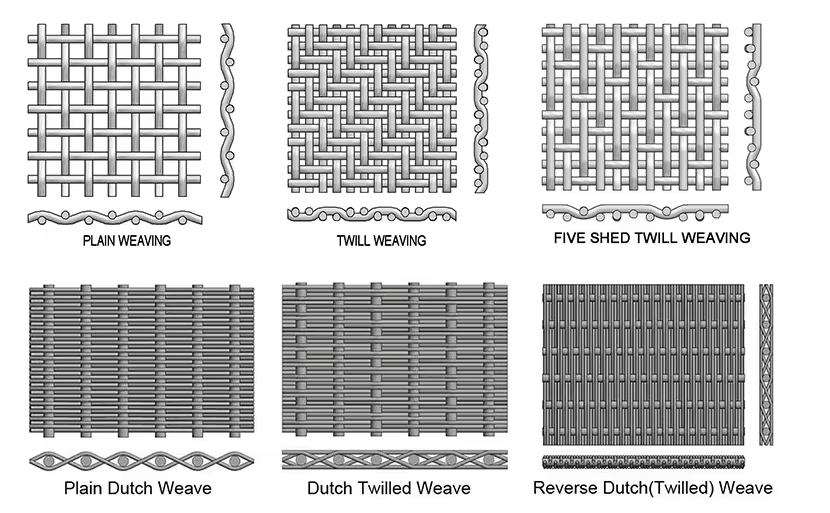

Weaving type	Plain Weave, Twill weave, Plain Dutch Weave, Twill Dutch Weave, Twill Reverse Duth Weave, Crimped
Feature	Good corrosion resistance, sturdy and durable
Sample	Available
Applications	Gas, liquid filtration, and other media filtration and separate industry. Such as mining industry, petroleum, chemical industry, automotive industry, food and pharmaceutical and other indutstry

Stainless Steel Wire Mesh Size and Type:• Material: 201, 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.• Mesh: 2mesh up to 600mesh(mesh: No.of hole in one inch).• Woven type: plain weave, twill weave, plain dutch weave, twill dutch weave.Stainless Steel Woven Wire Mesh Specifications: Plain & Twill Weave Woven Wire Mesh

Mesh	Wire Dia.		Opening Width		% of Open Area
Mesh	inch	mm	inch	mm	% of Open Area
1x1	0.0800	2.0300	0.9200	23.3700	84.6
2X2	0.0630	1.6000	0.4370	11.1000	76.4
3X3	0.0540	1.3700	0.2790	7.0900	70.1
4X4	0.0630	1.6000	0.1870	4.7500	56.0
4X4	0.0470	1.1900	0.2030	5.1600	65.9
5X5	0.0410	1.0400	0.1590	4.0400	63.2
6X6	0.0350	0.8900	0.1320	3.3500	62.7
8X8	0.0280	0.7100	0.0970	2.4600	60.2
10X10	0.0250	0.6400	0.0750	1.9100	56.3
10X10	0.0200	0.5100	0.0800	2.0300	64.0
12X12	0.0230	0.5840	0.0600	1.5200	51.8
12X12	0.0200	0.5080	0.0630	1.6000	57.2
14X14	0.0230	0.5840	0.0480	1.2200	45.2
14X14	0.0200	0.5080	0.0510	1.3000	51.0
16X16	0.0180	0.4570	0.0445	1.1300	50.7
18X18	0.0170	0.4320	0.0386	0.9800	48.3
20X20	0.0200	0.5080	0.0300	0.7600	36.0
20X20	0.0160	0.4060	0.0340	0.8600	46.2
24X24	0.0140	0.3560	0.0277	0.7000	44.2
30X30	0.0130	0.3300	0.0203	0.5200	37.1
30X30	0.0120	0.3050	0.0213	0.5400	40.8
30X30	0.0090	0.2290	0.0243	0.6200	53.1
35X35	0.0110	0.2790	0.0176	0.4500	37.9
40X40	0.0100	0.2540	0.0150	0.3800	36.0
50X50	0.0090	0.2290	0.0110	0.2800	30.3
50X50	0.0080	0.2030	0.0120	0.3100	36.0
60X60	0.0075	0.1910	0.0092	0.2300	30.5
60X60	0.0070	0.1780	0.0097	0.2500	33.9
70X70	0.0065	0.1650	0.0078	0.2000	29.8
80X80	0.0065	0.1650	0.0060	0.1500	23.0
80X80	0.0055	0.1400	0.0070	0.1800	31.4
90X90	0.0050	0.1270	0.0061	0.1600	30.1
100X100	0.0045	0.1140	0.0055	0.1400	30.3
100X100	0.0040	0.1020	0.0060	0.1500	36.0
100X100	0.0035	0.0890	0.0065	0.1700	42.3
110X110	0.0040	0.1016	0.0051	0.1295	30.7
120X120	0.0037	0.0940	0.0064	0.1168	30.7
150X150	0.0026	0.0660	0.0041	0.1041	37.4
160X160	0.0025	0.0635	0.0038	0.0965	36.4
180X180	0.0023	0.0584	0.0033	0.0838	34.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6
250X250	0.0016	0.0406	0.0024	0.0610	36.0
270X270	0.0016	0.0406	0.0021	0.0533	32.2
300X300	0.0051	0.0381	0.0018	0.0457	29.7
325X325	0.0014	0.0356	0.0017	0.0432	30.0
400X400	0.0010	0.0254	0.0015	0.3700	36.0
500X500	0.0010	0.0254	0.0010	0.0254	25.0
635X635	0.0008	0.0203	0.0008	0.0203	25.0

Plain Dutch Weave Woven Wire Mesh Specifications:

Mesh	Warp Wire (in)	Shute Wire (in)	abs um Rating	Nom um Rating
8X20	0.0140	0.0126	330-350	280
12X64	0.0240	0.0165	270-290	200
14X88	0.0200	0.0130	220-240	150
20X150	0.0098	0.0070	155-165	100
24X100	0.0150	0.0100	115-125	80
30X150	0.0090	0.0070	95-100	65
40X200	0.0070	0.0055	65-70	55
50X250	0.0055	0.0045	55-60	40
80X400	0.0049	0.0028	43-48	35

Twill Dutch Weave Woven Wire Cloth Specifications:

Mesh	Warp Wire (in)	Shute Wire (in)	abs um Rating	Nom um Rating
20x250	0.0098	0.0079	110-120	98
30x360	0.0098	0.0060	90-100	80
40x560	0.0070	0.0040	70-75	47
120x400	0.0040	0.0025	50-55	37
120x160	0.0040	0.0025	40-45	28
80x700	0.0040	0.0030	35-40	24
200x600	0.0024	0.0018	28-32	19
165x800	0.0028	0.0020	24-26	14
165x1400	0.0028	0.0016	16-18	9
200x1400	0.0028	0.0016	12-14	5
250x1400	0.0022	0.0016	11-12	3
325x2300	0.0015	0.0010	8-9	2
400X2800	0.0010	0.0008	6-7	1

As professional Stainless Steel Wire Mesh Supplier and Stainless Steel Wire Mesh Manufacturer, we will supply high quality Stainless Wire Mesh with low price, welcome contact us freely !
