A woven wire mesh, also known as a woven wire cloth, is created by interweaving wire strands in an over-under or under-over method to form various patterns with different specifications.
A woven wire mesh, also known as a woven wire cloth, is created by interweaving wire strands in an over-under or under-over method to form various patterns with different specifications. Here are some of the most common weave patterns.
The mesh weave pattern significantly affects its suitability for different applications. Generally, square weaves are ideal for general-purpose uses, while Dutch weaves are better for air and water filtration.
In addition to the weave, the size and material of the woven wire mesh vary. Opening sizes range from a few microns to several inches, and materials include aluminum, brass, copper, and mild steel.
Specifications:
Product Name | Woven Wire Mesh, Wire Cloth |
Stainless Steel Grade | 304, 304L, 316, 316L, 310s, 904L, 430, etc |
Wire Diameter Range | 0.02 - 6.30mm |
Hole Size Range | 1 - 3500mesh |
Weave Types | Plain Weave |
Mesh Width | Standard less than 2000 mm |

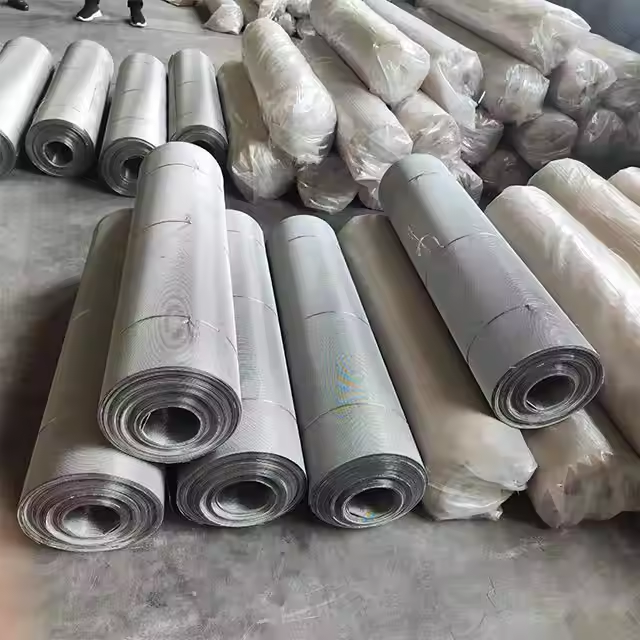

Mesh Length | 30m rolls or cut to length, minimum 2m |
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||
Inch | MM | Inch | MM | |||
1×1 | 0.080 | 2.03 | 0.920 | 23.37 | 84.6 | 41.1 |
2X2 | 0.063 | 1.60 | 0.437 | 11.10 | 76.4 | 51.2 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
4X4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 | 104.8 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | 57.6 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | 41.2 |
10X10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0 | 26.1 |
12X12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 | 42.2 |
12X12 | 0.020 | 0.508 | 0.063 | 1.60 | 57.2 | 31.6 |
14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
14X14 | 0.020 | 0.508 | 0.051 | 1.30 | 51.0 | 37.2 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
20X20 | 0.020 | 0.508 | 0.0300 | 0.76 | 36.0 | 55.2 |
20X20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2 | 34.4 |
24X24 | 0.014 | 0.356 | 0.0277 | 0.70 | 44.2 | 31.8 |
30X30 | 0.013 | 0.330 | 0.0203 | 0.52 | 37.1 | 34.8 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 |
30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | 16.1 |
35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29.0 |
40X40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0 | 27.6 |
50X50 | 0.009 | 0.229 | 0.0110 | 0.28 | 30.3 | 28.4 |
50X50 | 0.008 | 0.203 | 0.0120 | 0.31 | 36.0 | 22.1 |
60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
70X70 | 0.0065 | 0.165 | 0.0078 | 0.20 | 29.8 | 20.8 |
80X80 | 0.0065 | 0.165 | 0.0060 | 0.15 | 23.0 | 23.2 |
80X80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4 | 16.9 |
90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
Benefits of Choosing Woven Wire Mesh:
- Extensive Options: Wide range of hole sizes (e.g., 11.1mm to 0.26mm), materials, and patterns available.
- Structural Integrity: Clinched, interwoven construction maintains strength under impact and stress.
- Cost-Effective: Optimized manufacturing reduces waste, lowering costs (enhanced by our experience).
- Permeability: Openings allow superior light, air, sound, and visibility transfer.
- Low Maintenance: Easy to clean, reducing labor time and cost.
- Customization: Available in both standard and bespoke solutions for specific needs.
Popular Applications for Woven Wire Mesh:
- RFI/EMI Shielding: Prevents signal disruption in electronic enclosures.
- Pest Barriers: Durable mesh deters rodents and excludes insects while allowing ventilation.
- Filtration: Precise weaves filter liquids and air in diverse systems.
- Separation: Crucial for separating components in chemical, food, and pharmaceutical industries.
- Baskets & Racking: Provides durable, ventilated storage and display solutions.
- Fencing: Offers secure, long-lasting barriers for agricultural, industrial, and residential use.
- Grates & Grills: Heat-resistant mesh for cooking and industrial applications.
- Safety Rails: Adds protective, aesthetic elements to handrails and guardrails.
- Precision Screens: Used in medical centrifuges and inspection processes for accuracy.
- Stands & Shelving: Creates strong, modern support structures.
